GY6 Shorty Pro Flange - Fully Adjustable

The Details ⚙️

Trying to mount your carb and it’s hitting the frame? This adjustable GY6 clocking flange fixes that problem cleanly — no cutting, grinding, or forcing things to fit.

Our Shorty Pro Flange is the first fully adjustable clocking flange designed to properly align your carburetor on GY6 Ruckus and Maddog builds. Instead of modifying your engine or shrouds, you simply adjust the flange to get the angle you need.

It uses a thick, reusable square O-ring for a proper seal — no paper gaskets, no messy sealants. The reinforced design also prevents bending during installation, a common issue with cheaper flanges.

With a 28mm intake opening, it matches most high-flow heads, so there’s no need for port matching.

🚀 Need more clearance?

👉 Pair it with our Pro Intake Spacer

Fix your fitment issues the right way — clean, adjustable, and built to last 🔧

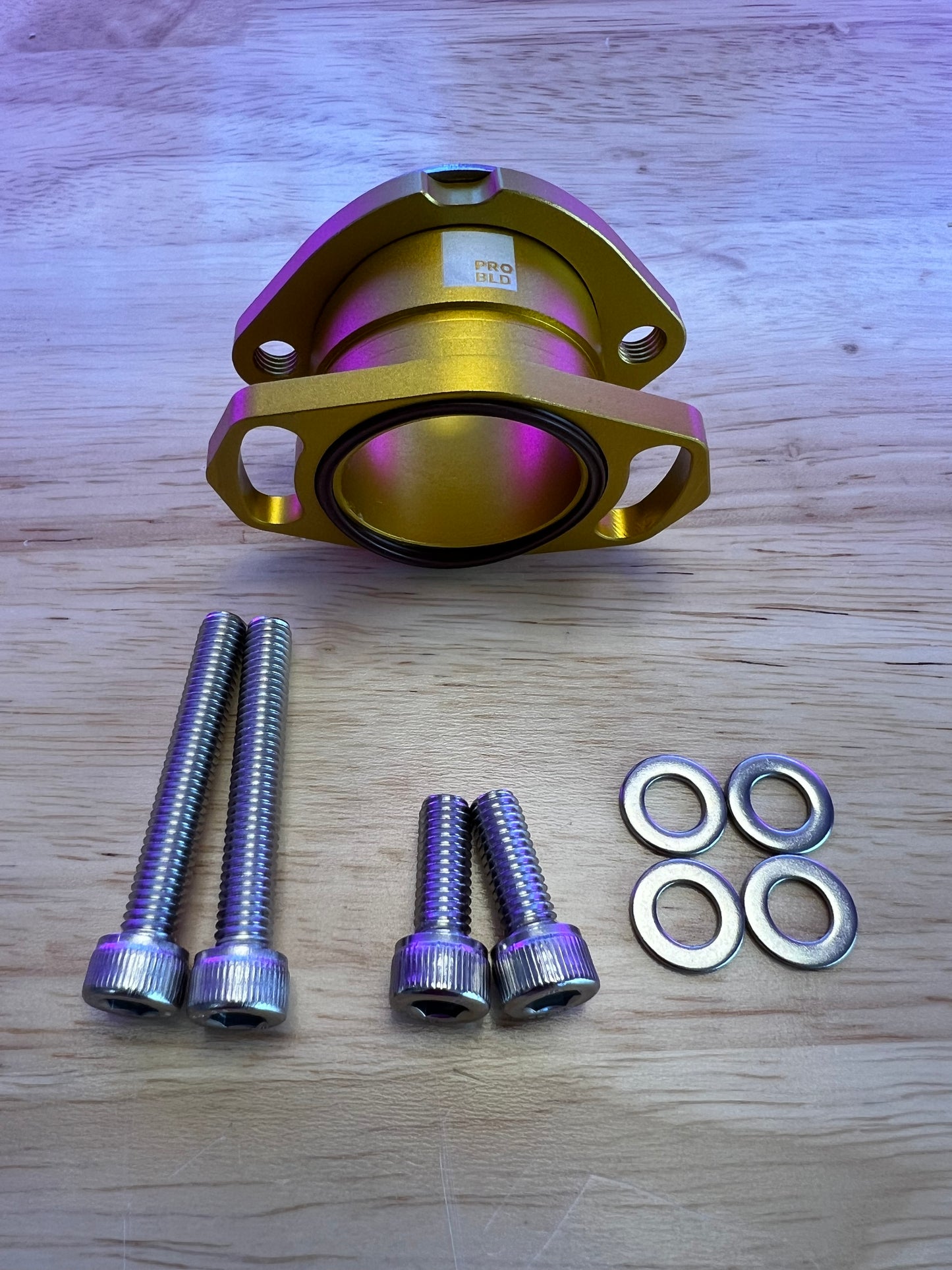

What's Included 📦

• 🧩 1× Shorty Pro Flange (Silver or Gold)
• 🟫 1× Square O-Ring (reusable seal)
• 🔩 2× M6x16x1.0 Stainless Allen Bolts
• 🔩 2× M6x40x1.0 Stainless Allen Bolts
• 🔘 Washers (NO LONGER INCLUDED. It’s best without them.)

Important Things to Note 🚨

• Fits all QMJ157 GY6 engines.
• Designed for carburetor clearance and alignment on Ruckus and Maddog builds.
• No port matching required (28mm opening).
• O-ring seal replaces traditional gaskets — ensure proper seating during install.

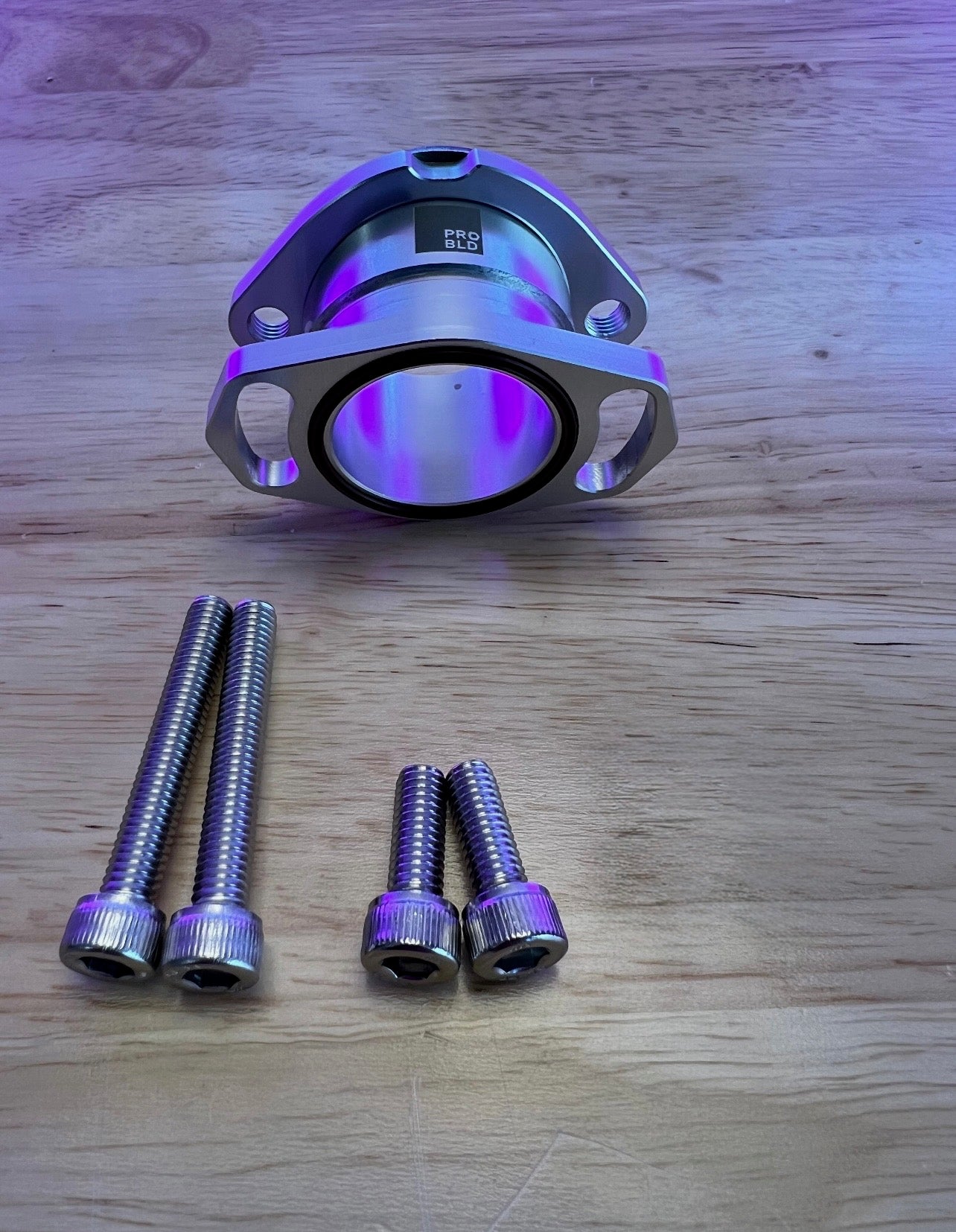

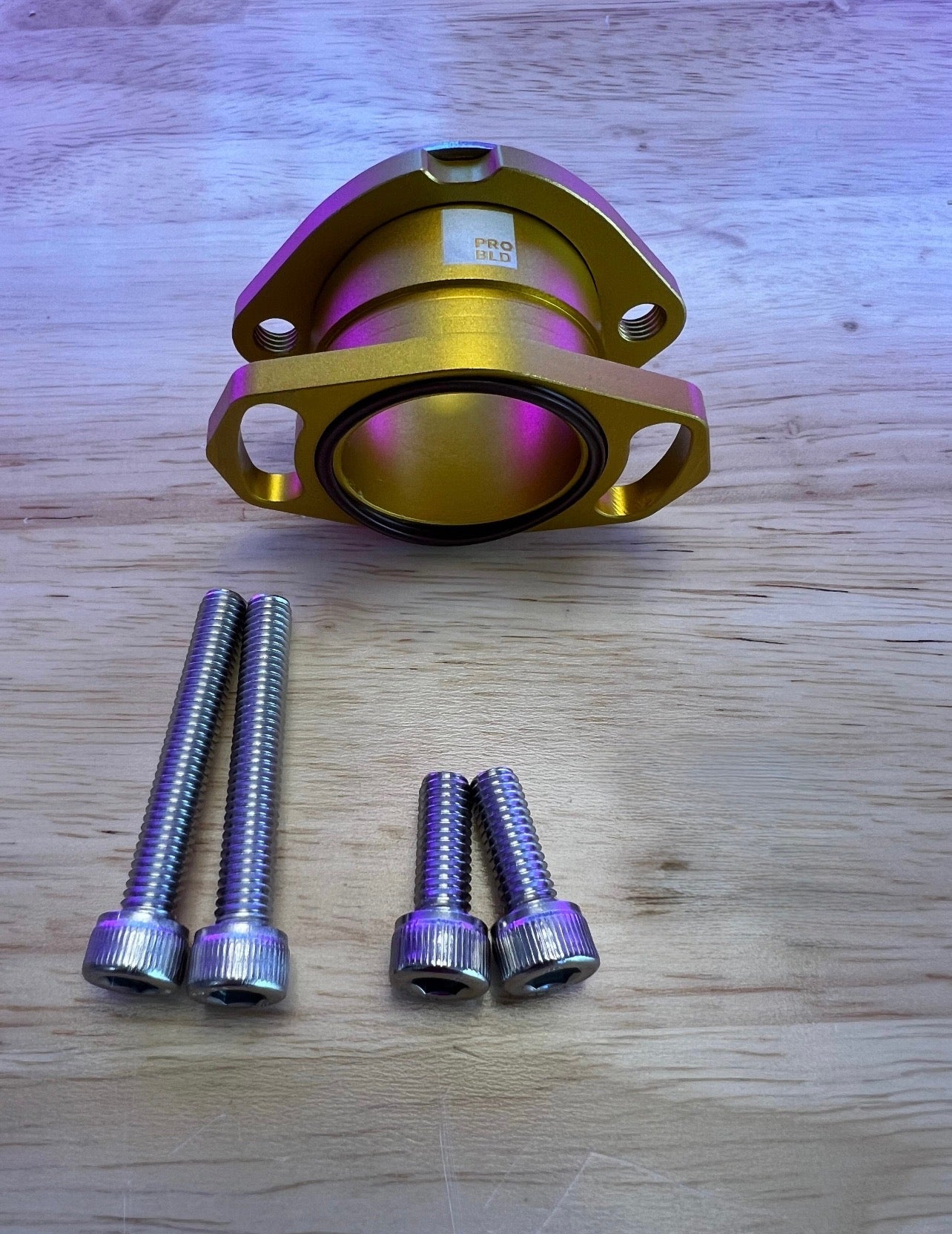

• Available in raw aluminum (silver) or anodized (gold).

Not sure if this will fix your setup? Message us — we’ll help you confirm 👍
